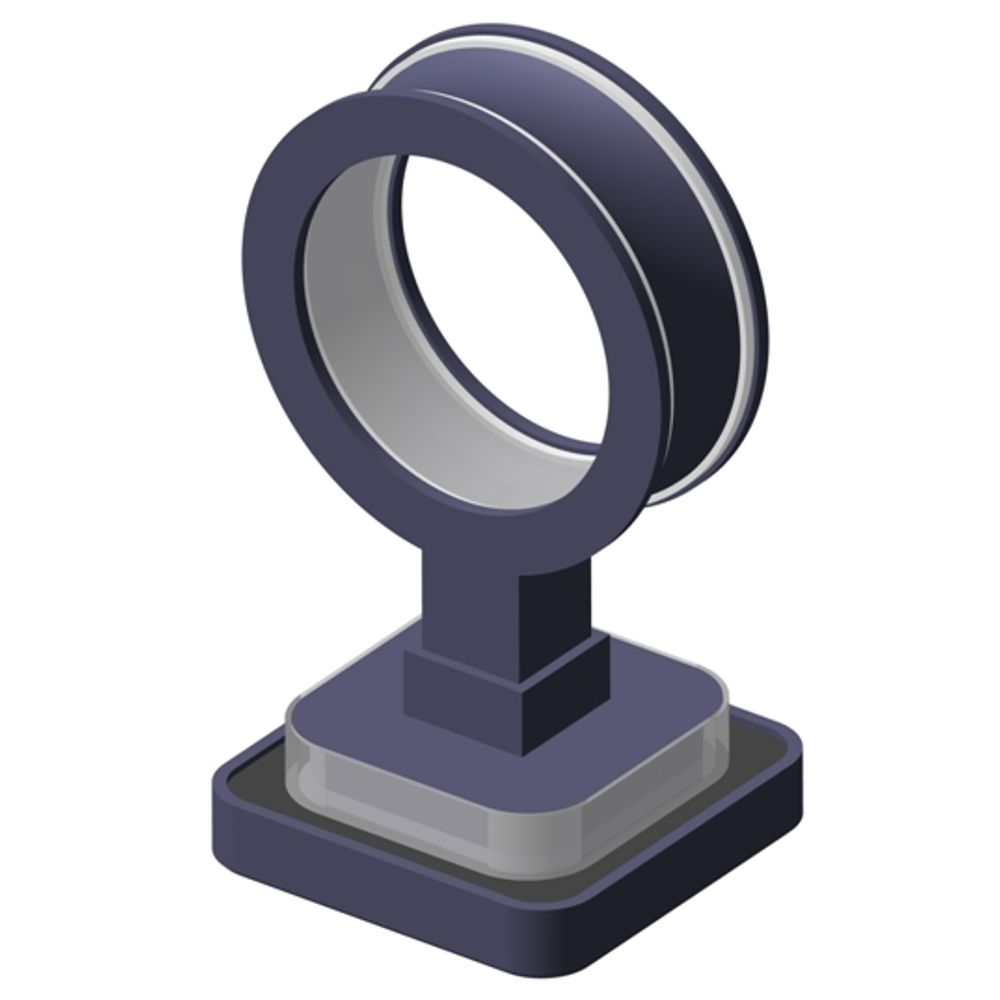

HEADPHONE STAND LAMP

0 (likes)
281 (views)
This product is available only if you have an account in My Mini Factory service
×
Color:
  1. Print without supports. Support only for screw slots, only on the table. I do not recommend supports in part number 1. Support only in parts where there are through holes.2. I printed the prototype from PETG.3. I tested the prototype for a long time with high-power LEDs installed and a 12VDC 25W power supply.4. The lamp heats up in some places to about 48 degrees Celsius. This is normal. The power supply can heat up to 51 - 54 degrees, but in inaccessible places. I did not find any problems related to temperature during tests.5. The LED cover on the base expands slightly and becomes loose when heated. This does not affect the operation of the lamp and is not a problem, just an unforeseen inconvenience.6. LED covers can be printed from transparent materials. In the prototype I made it from white opaque PETG and the lamp shines well. In this version it serves as a night light. If we use transparent materials the lamp will shine brighter.7. To reduce the lamp's heating, you can use a lower-power LED and a lower-power power supply. Here you can adjust the parts yourself.8. I used a typical power supply mounted in electrical installation boxes. I used a waterproof power supply with a height of 22 mm but you can go up to 24 mm and a diameter of 50 mm but you can go up to 52 mm.9. To connect the installation inside the lamp, I used WAGO single-line connectors - 4 pieces, crimped with the possibility of disconnection. I provided a place for such connectors during the design.10. The wires to the LED strips must be soldered.11. The LED strip in the round part is 375 mm long and is mounted tightly so that there is no gap and no visible change in light. I recommend LED strips that can be cut every 25 mm.12. The LED strip in the base is 312.5 mm long and has a slot. The slot makes it easier to mount and is located on the back of the lamp.13. I used a ready-made power cable with a switch, commercially available, 3 m long – with a cross-section of 2X0.75 mm square and a maximum current of 2.5 A.14. To protect the power cord from being pulled out, I pushed it in deeper and hid it around the power supply. There is no way to pull the cord out and the switch is closer to the lamp, which is beneficial.15. The lamp has no small or detachable parts, so it is safe for children.16. The lamp is not waterproof but has a higher level of water resistance.17. Elements 4 can be glued with glue or double-sided adhesive tape.18. Element 9 should be glued to element 10 using glue. Remember the order of assembly. I recommend transparent glue PATTEX – ONE FOR ALL (CRYSTAL). PL LAMPA – STOJAK DLA SŁUCHAWEK   1. Drukować bez podpór. Podpory jedynie dla wpustów pod wkręty, tylko na stole. Nie zalecam podpór w części numer 1. Podpory tylko w częściach gdzie są otwory przelotowe.2. Prototyp wydrukowałem z PETG.3. Prototyp testowałem długotrwale z zamontowanymi LED o dużej mocy i zasilaczem 12VDC o mocy 25W.4. Lampa się nagrzewa w niektórych miejscach do około 48 stopni Celsjusza. Jest to normalne. Zasilacz może nagrzewać się do 51 – 54 stopni ale w miejscach nie dostępnych. Nie stwierdziłem problemów związanych z temperaturą w czasie testów.5. Osłona LED podstawki po nagrzaniu odrobinę się rozszerza i staje się luźna. Nie ma to wpływu na działanie lampki i nie stanowi problemu, a jedynie nie przewidzianą niedogodność.6. Osłony dla LED można wydrukować z przezroczystych materiałów. W prototypie wykonałem z białego PETG nieprzezroczystego i lampa świeci dobrze. W tym wykonaniu spełnia funkcję lampki nocnej. Jeśli zastosujemy przezroczyste materiały lampa będzie świecić mocniej.7. Aby zmniejszyć nagrzewanie lampy można zastosować LED o mniejszej mocy i zasilacz o mniejszej mocy. Tutaj można dostosować części samodzielnie.8. Użyłem typowego zasilacza montowanego w puszkach instalacji elektrycznej. Użyłem zasilacza wodoodpornego o wysokości 22 mm ale można maksymalnie 24 mm oraz o średnicy 50 mm ale można maksymalnie 52 mm.9. Do połączenia instalacji wewnątrz lampy użyłem złączek WAGO jednoliniowych – 4 sztuk, zaciskanych z możliwością rozłączania. Przewidziałem w trakcie projektowania miejsce dla takich złączek.10. Przewody do pasków LED należy przylutować.11. Pasek LED w części okrągłej ma długość 375 mm i jest montowany ciasno, po to aby nie było szczeliny i widocznej zmiany światła. Zalecam paski LED z możliwością cięcia co 25 mm.12. Pasek LED w podstawce ma długość 312,5 mm i jest tam szczelina. Szczelina ułatwia montaż i jest umieszczona z tyłu lampki.13. Wykorzystałem gotowy przewód zasilający z wyłącznikiem dostępny w handlu o długości 3 m – o przekroju 2X0,75 mm kwadratowy i maksymalnym prądzie 2.5 A.14. Aby zabezpieczyć przewód zasilający przed wyszarpnięciem wsunąłem go głębiej i schowałem wokoło zasilacza. Nie ma możliwości wyszarpnięcia przewodu a wyłącznik jest bliżej lampki, co jest korzystne.15. Lampka nie ma części małych i mogących się oddzielić, więc jest bezpieczna dla dzieci.16. Lampka nie jest wodoodporna ale ma wyższy poziom wodoodporności.17. Elementy 4 można przykleić klejem lub za pomocą taśmy dwustronnej klejącej.18. Element 9 należy przykleić do elementu 10 za pomocą kleju. Należy pamiętać o kolejności montażu. Zalecam przejrzysty klej PATTEX – ONE FOR ALL (CRYSTAL).
